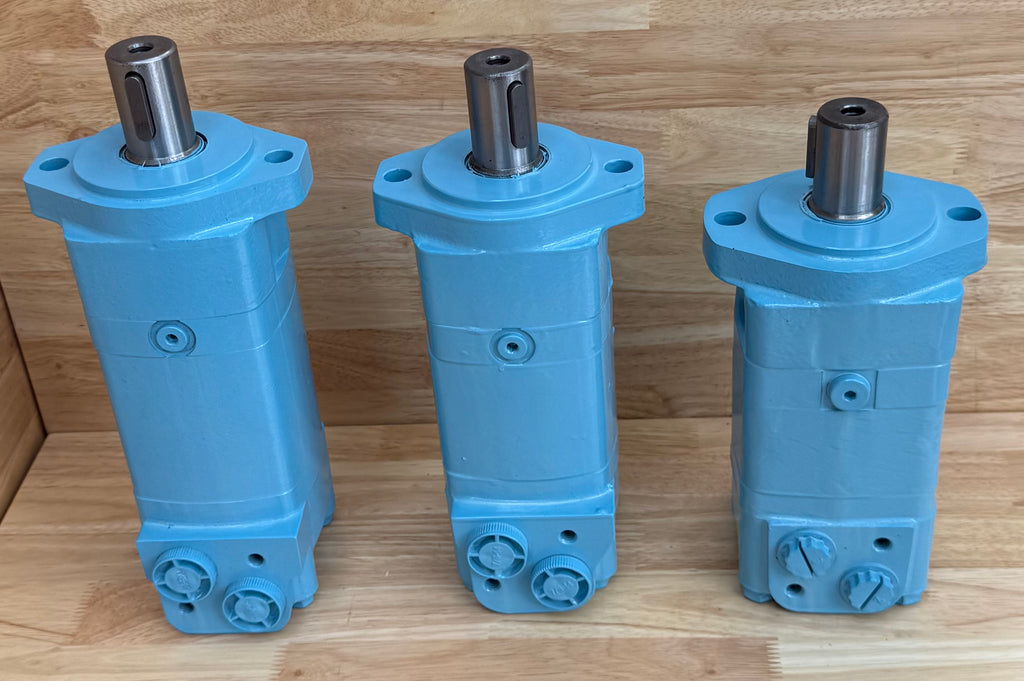

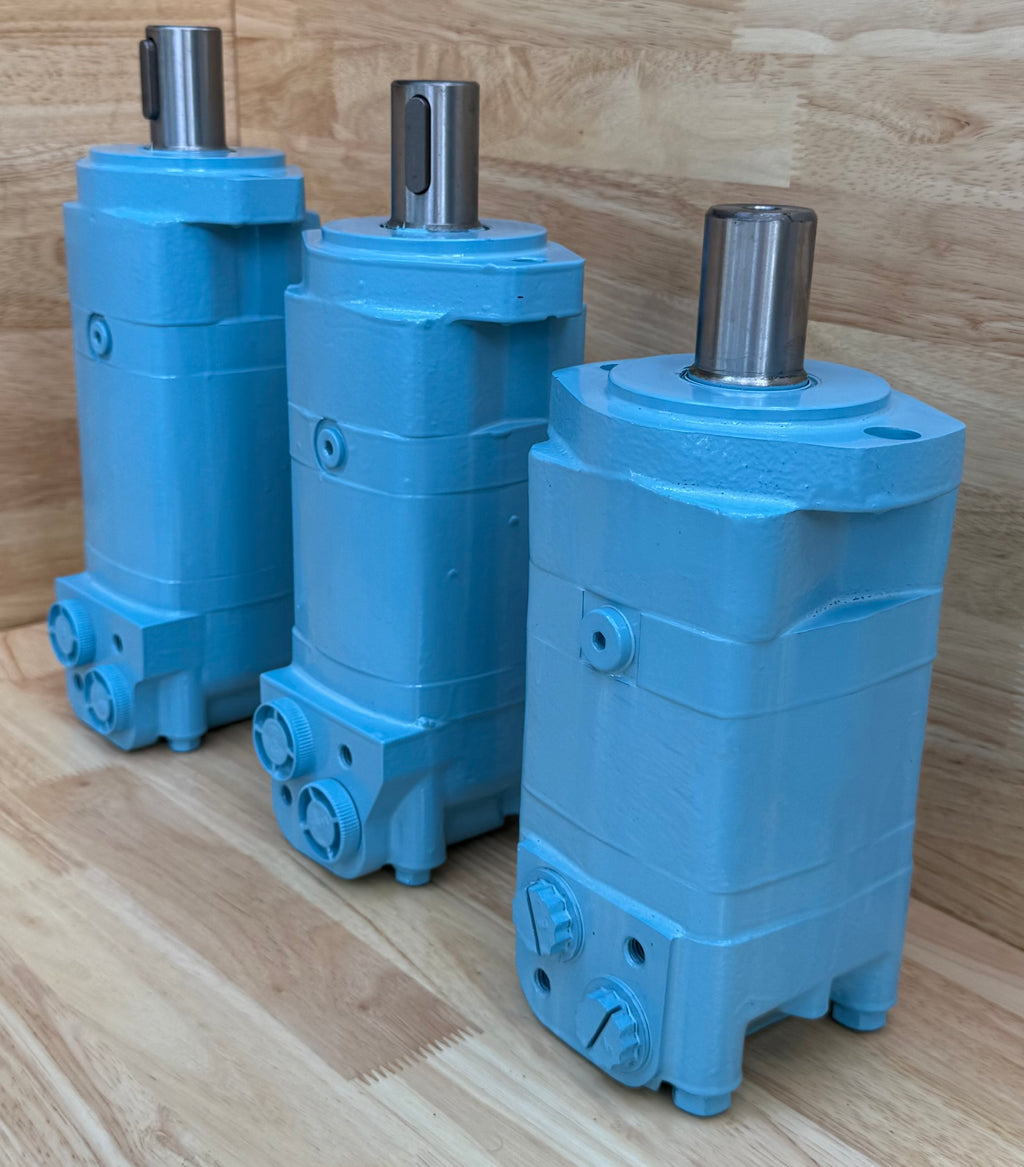

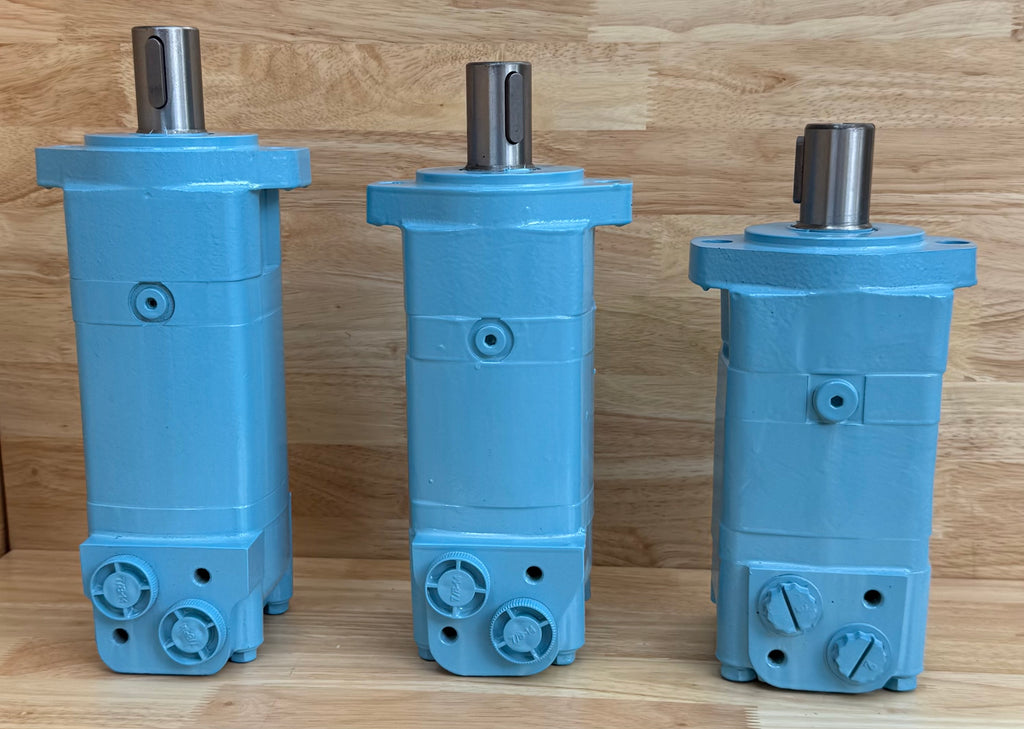

2K Series Hydraulic Marine Motors

Shaft: 1.25” Straight Shaft Keyed with 5/16” Keyway, 3/8”-16 Thread in end of shaft

Mounting Flange: 2 Bolt SAE A Flange, 3.25” Pilot Diameter x .25” Pilot Height, 2 - 1/2” Diameter holes on 4.19” Diameter bolt hole circle

Ports: Motor Inlet/Outlet - #10 ORB, Case Drain - #4 ORB

Flows: 20 GPM Continuous, 30 GPM Intermittent

Our Hydro Savage 2K series hydraulic motors offer superior corrosion resistance versus traditional hydraulic motors. Our motors are powder coated, then epoxy coated, and finally polyurethane coated to last a lifetime with minimal to no corrosion in the rugged marine environment when properly installed. Our Hydro Savage series hydraulic motors also offers higher torque than the Char-Lynn/ Eaton hydraulic motors, giving your hauler/ winch more line pull and better performance.

Note: If your hydraulic system is working 1500PSI or above than an external case drain from motor to return line is required to prevent motor damage/ failure. This applies to all brands of hydraulic motors, not just ours. Benefits of a case drain include - major reduction in heat generation in hydraulic system. Prevents motor shaft seal from over pressurization and leaking. Helps prevent contamination, and far extending equipment lifespan.
