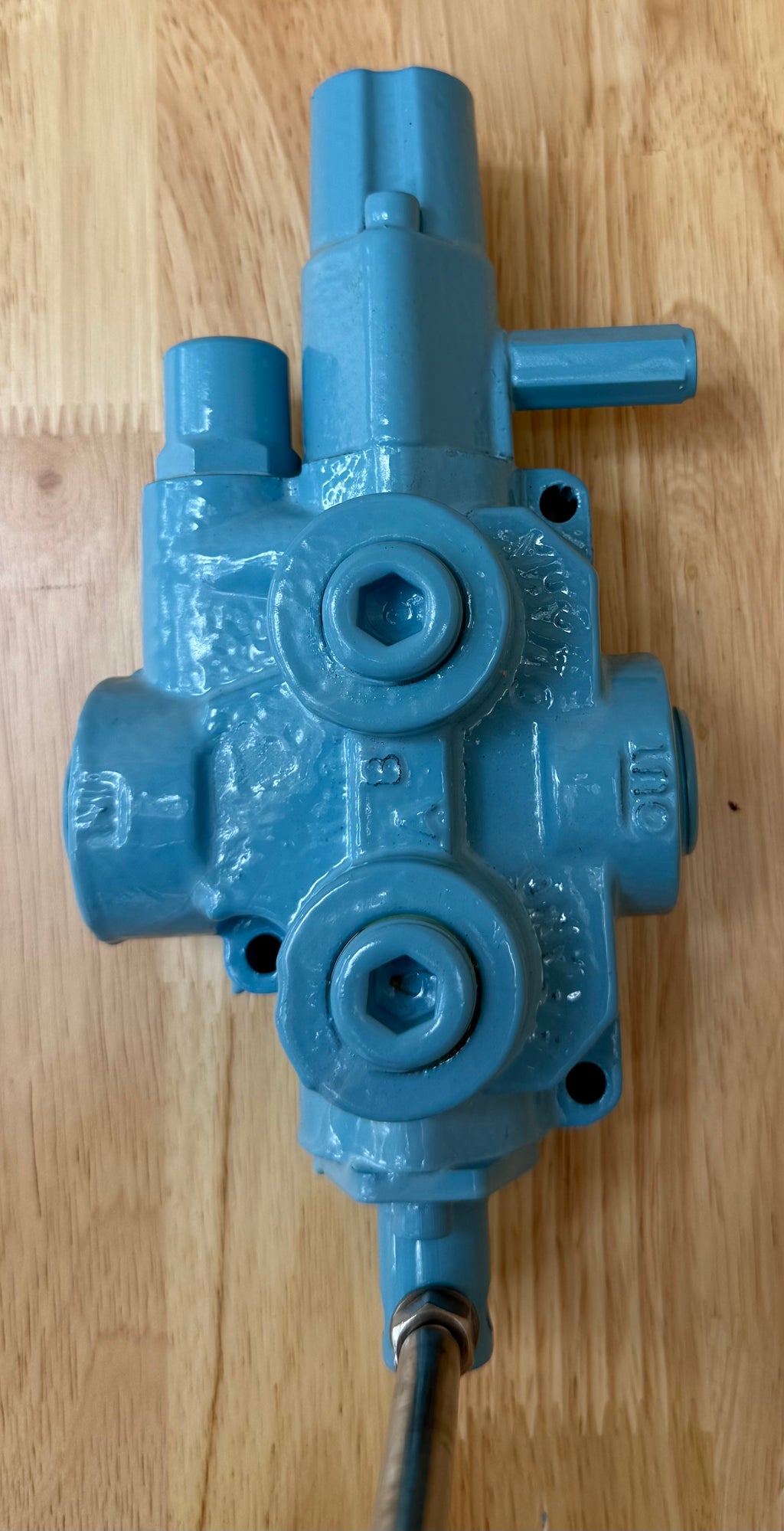

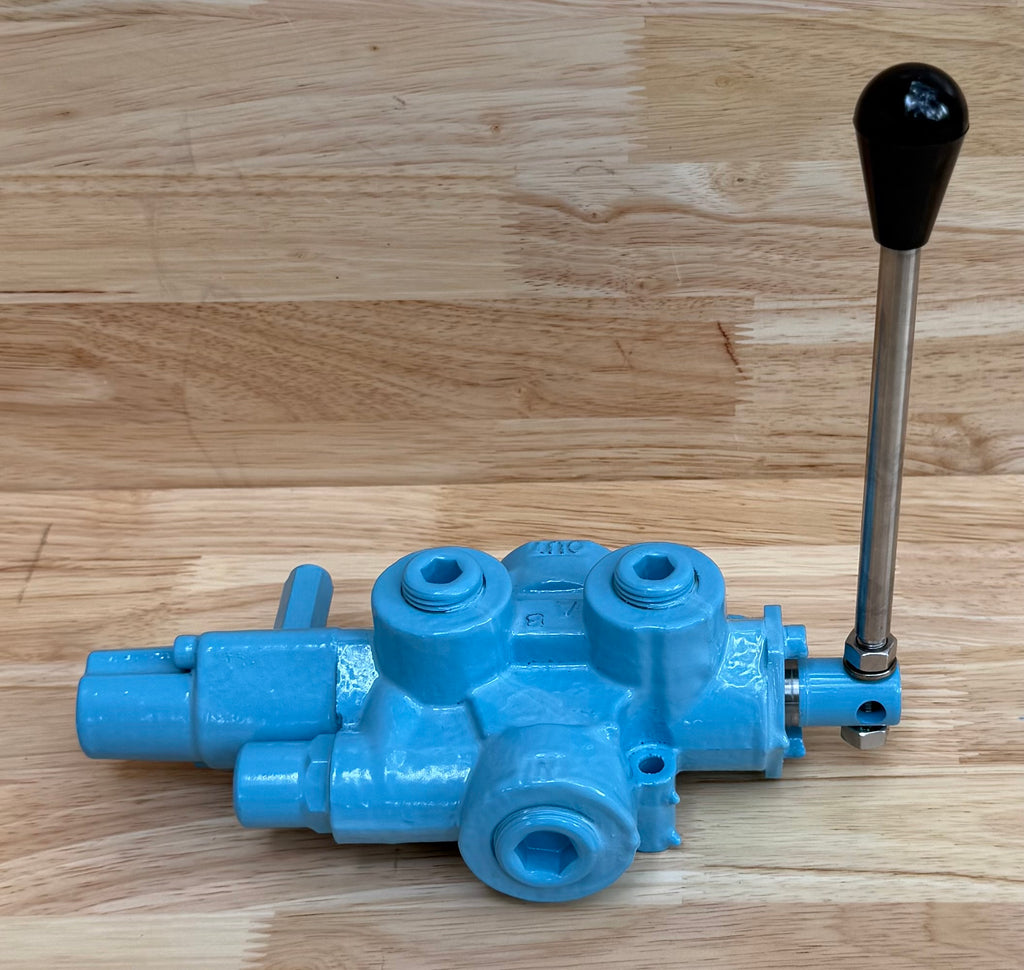

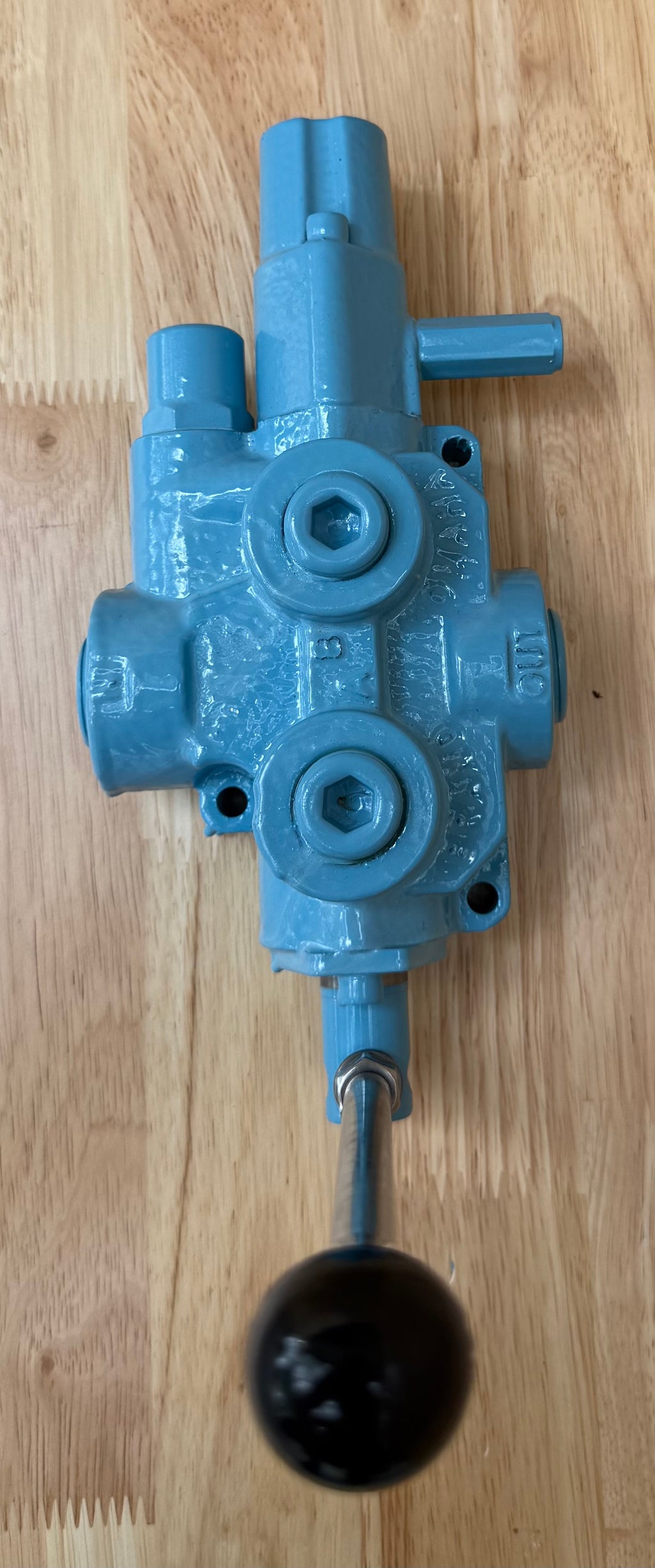

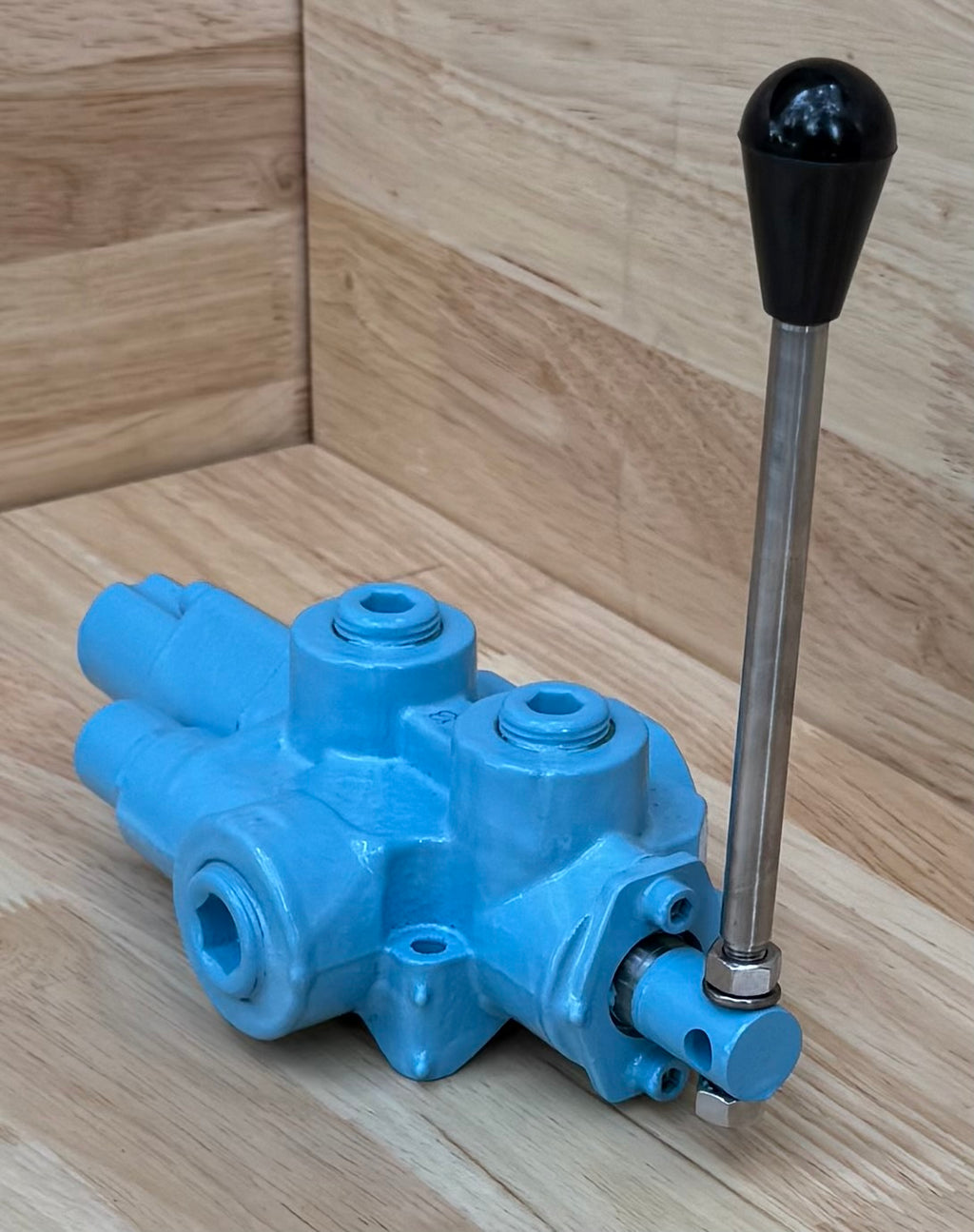

Hydraulic Rotary Directional Control Valve w/ Stainless Steel Spool, Motor Spool

Hydro Savage Marine directional rotary control valve with stainless steel spool. Manufactured in the USA. This valve is used on hydraulic haulers up to 14”. A high quality economical valve choice for commercial use. This is our valve we use with our hydraulic power pack units. This valve has a rotary friction detect so when valve is actuated in either cw or ccw direction, spool will stay in place it was positioned and will not spring to neutral when letting go of valve handle. Valve handle rotates clockwise and counter clockwise to actuate valve. You will feel spool click into the detent when valve is in the neutral position.

Note: If using multiple valves, this valve would be plumbed in last on a series of valves, and all other hydraulic valves plumbed before this valve must be equipped with power beyond. Please call for technical support if unsure on what to do.

Flow Rate: 20 GPM

Max Pressure: 3000 PSI

Relief Preset Pressure: 1500 PSI

Spool Type: Motor Spool

System Type: Open Center

Work Port Type: Open to Tank Return in Neutral Position

Not Power Beyond Capable

Inlet/ Outlet Port Sizes: 3/4” NPT

Work Port Sizes: 1/2” NPT
